Phase diagram of anisotropic particles with octahedral symmetry

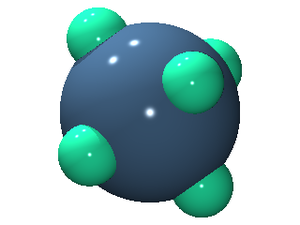

Artists impression of an octahedral patchy particle

The phase diagram of anisotropic particles (also known as patchy particles) that have octahedral symmetry . The octahedral symmetry is achieved via six attractive patches using the modulated patchy Lennard-Jones model.

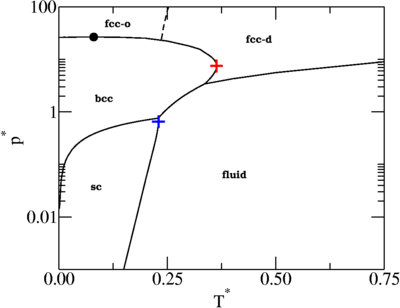

Pressure-temperature plane

Key: fcc-o: face centred cubic (ordered), fcc-d:face centred cubic (disordered), bcc: body centred cubic and sc: simple cubic lattice.

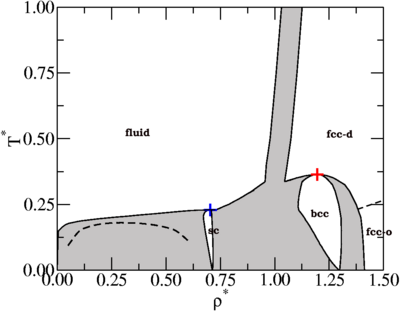

Density-temperature plane

Key: as above.

References

Related reading

• Jonathan P. K. Doye, Ard A. Louis, I-Chun Lin, Lucy R. Allen, Eva G. Noya, Alex W. Wilber, Hoong Chwan Kok and Rosie Lyus "Controlling crystallization and its absence: proteins, colloids and patchy models", PCCP 9 pp. 2197-2205 (2007)
